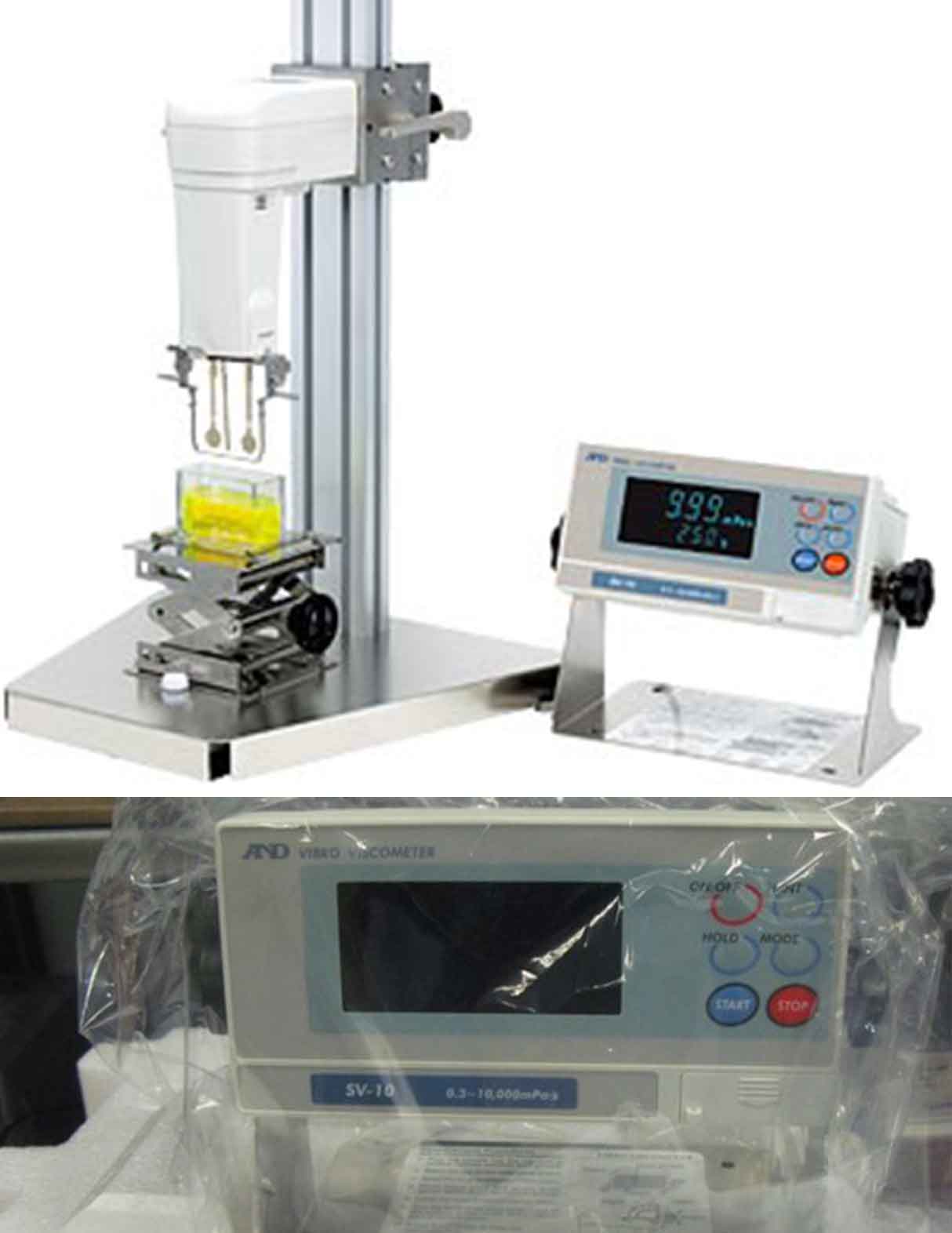

AND SV-10 점도계

SV Series SeriesSine-wave Vibro Viscometer

Viscometery Revolution !

Sensor Unit

Corrosive-resistant gold-plate sensor plate and temperature sensor.

It is very important to measure the temperature of the fluid correctly because the viscosity is very much dependent upon the temperature of the fluid. SV series can detect accurate temperature immediately because the fluid and the detection unit (sensor plates) with small surface area/thermal capacity reach the thermal equilibrium in only a few seconds.

SV series, Tuning-fork Vibration Method does not cause damage to the sample fluid and allows measurement of cloud point of samples such as surface active agents and of surface/interface changes such as wettability because of its excellent feature for wide measurement range without the need to replace the sensor plates.

Display Unit

You can avoid unnecessary reading errors with easy-to-read, large, clear display: 13mm height for viscosity measurement and 11mm height for temperature measurement.

WinCT-Viscosity

WinCT-Viscosity (RsVisco) is software to import the measurements of viscosity and temperature from SV series to a PC automatically and display the measurement result by graph on real-time basis. The scaling function and the logarithm display is selectable in the function.

Saving the measurement data by “CSV” file and opening it with the WinCT-Viscosity is very easy and convenient for your analysis of your sample fluid viscosity

Water Jacket

Our water jacket (AX-SV-37) (sold separately) used in conjunction with a commercially available constant heat water tank to heat the circulating system, ensures that the sample remains at a constant temperature and that the temperature can be changed for viscosity measurement.

(A small sample container AX-SV-34 and a glass container AX-SV-35 are available, sold separately.)
